Sima

Orty, Bayle, Acma

It has a round head and is 10 mm longer than the standard Orty. Specially designed for Orty and Bayle pickers.

Detailed information

Suitable for:     Orty, Bayle and Acma

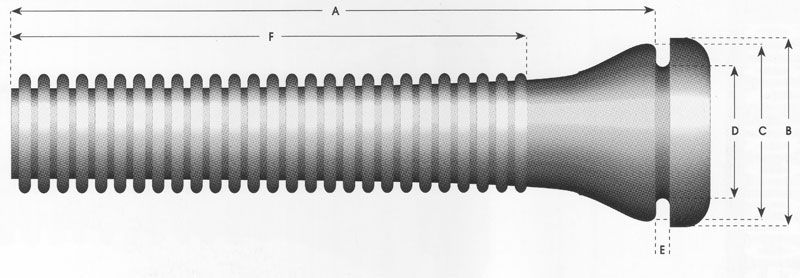

Overall length A: 137 mm
Head diameter B: 32x32 mm
Shoulder diameter C: 31 mm
Single groove diameter D: 26 mm
Groove width E: 2,3 mm
Stud length F: 90 mm
Number of fingers per box: 250 units
Weight per box: 16,5 kg
